Product Details
Technical specifications
NanoSprint 43 Specifications
Sensor Size [pixels] 7915 × 5436
Phosphor Pixel Size [μm ] 5.5
Active Pickup Region [mm] 43×30
Digitization ≥ 16 bits with frame accumulation
Mounting Position on-axis
HT Range [kV] 20–200
Optical Coupling AMT custom high MTF B lens
Lens Magnification 0.5
Lens NA image 0.22
Lens MTF at Nyquist [%] > 40
Framerate for Display Image [fps] 8
Cooling 20? C water
Micro Lenses for High Fill Factor Yes
Shutter Global
Single Frame Exposure [ms] 0.1 - 1000
Power 100-240VAC
Digital Interface Camera LinkVacuum
Compatibility < 10-7 torr
Vacuum Seals Fixed O-ring
Environment Electronics and cooling outside of vacuum
X-ray shielding limit Up to 200kV
Certifications UL, CE, RoHS
Computer OS Windows 7/10 Professional 64 bits0.543 x

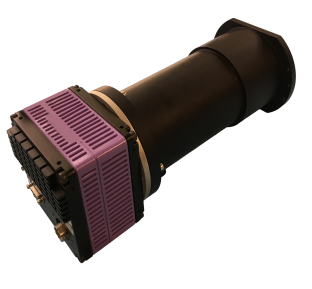

Product appearance
Application example
