Product Details
This system employs the linear motor actuators and air spring for the active vibration isolation. It can suppress vibrational disturbance which allows the ORION NanoFab to maintain a high resolution.
Technical specifications
Item Description
Product Low height active vibration isolation system
Dimension 1300(W) x 1600(D) x 182(H, deflated position) mm
Weight 1100Kg
Isolation Mechanism (1) 6 Active degrees of freedom
Isolation Mechanism (2) Active Isolation by Linear Motor actuator
Required air pressure 0.6MPa and above
Load weight (maximum) 2000Kg (even load)
Power Supply 100-240VAC
Power Supply Frequency 50/60Hz
Power Consumption (maximum) 380W
Isolation starting frequency 0.5Hz

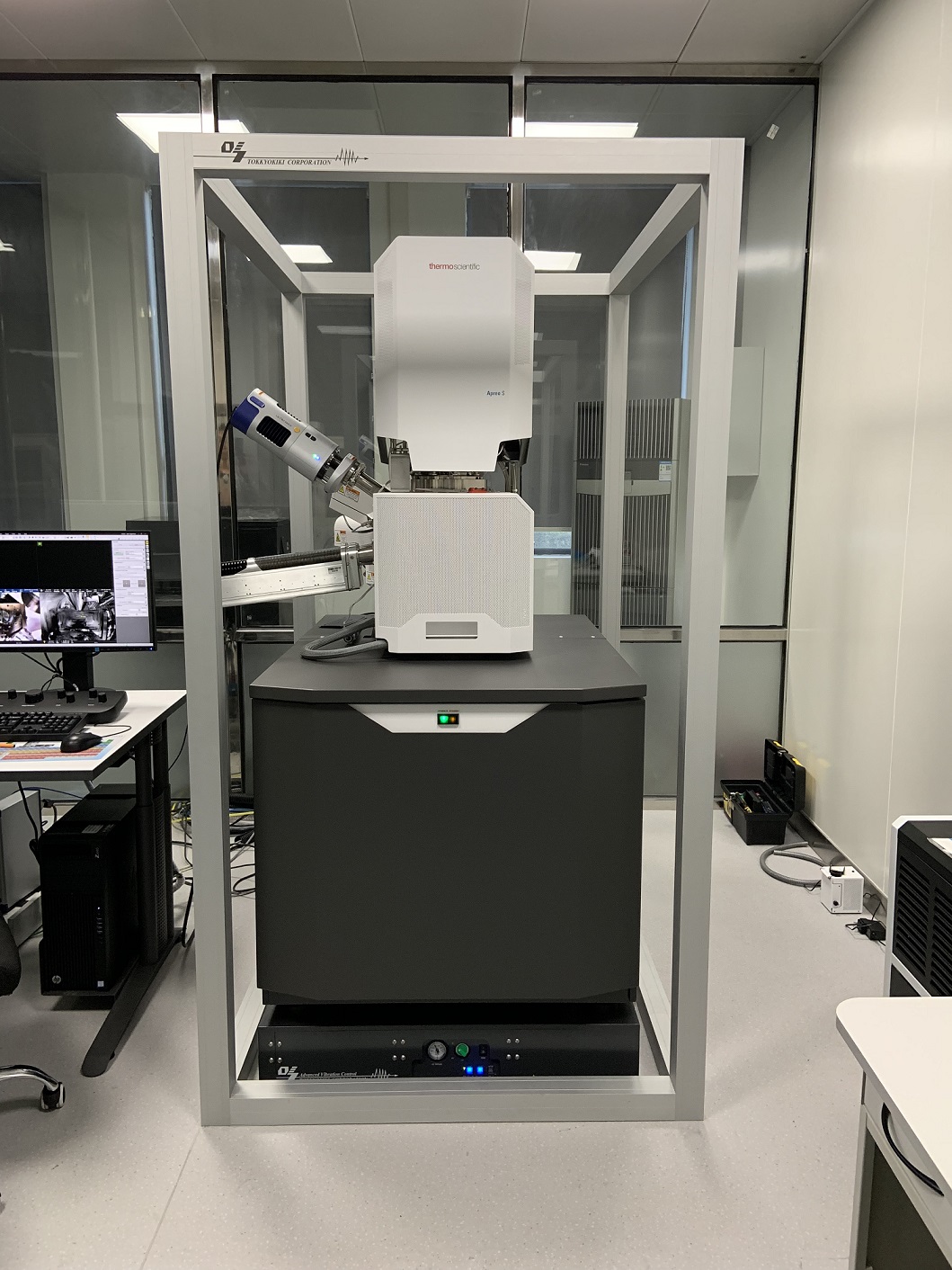

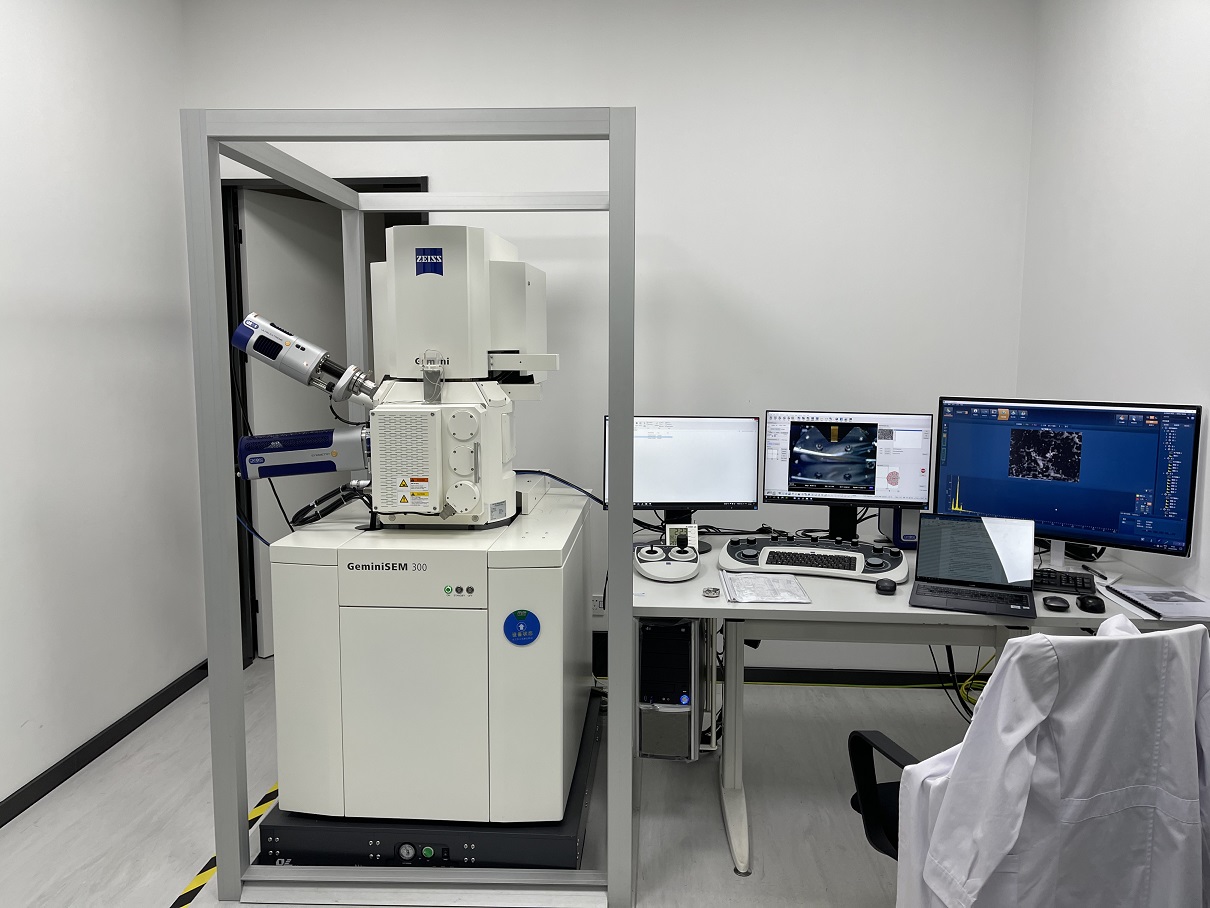

Application example
